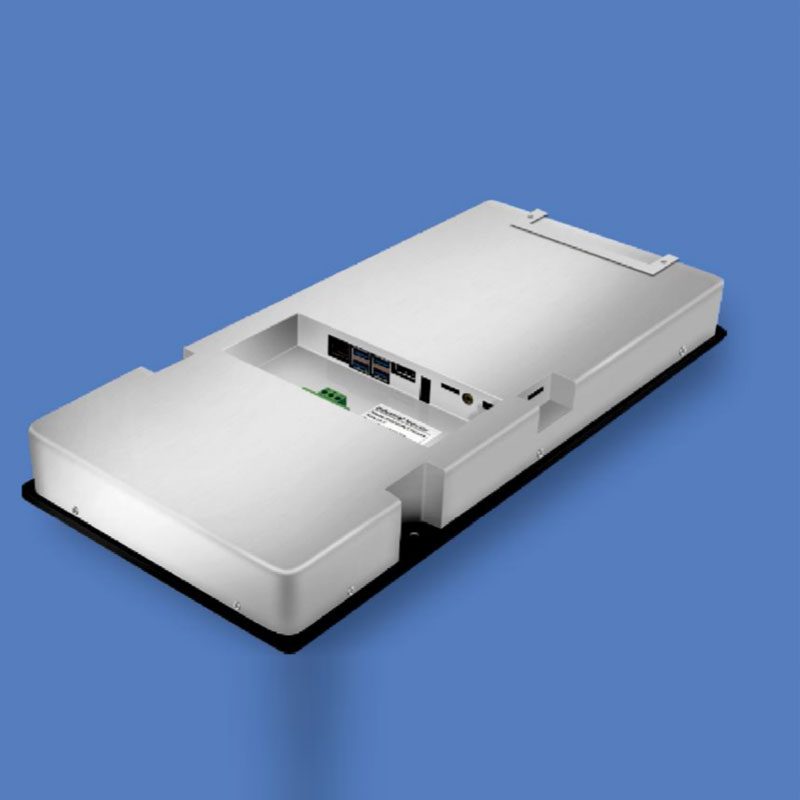

This GKIND10IP65INT 10.4″ Android outdoor intercom access control door tablet IP65 rated all-in-one fully waterproof is designed for video intercom and access control in multi-tenant buildings, apartment homes, and offices. The intercom access control device can be installed inside the lobby or outdoors as it is fully protected from water and dust. This unit can be also used in entry gates to look up and call residents and trigger opening gates.
The Android outdoor Intercom access control door tablet features several interfaces including a built-in relay allow you to integrate easily with external systems. OEMs can develop applications using the rich SDK or can install third-party apps from Android Play Store.
Features
- IP65 Full waterproof casing for outdoor installations
- CPU ARM Cortex A73 octa-core(2.0GHz)
- GPU ARM Mali-G72 MP3′
- RAM 4G
- Internal Memory 32G
- External Memory Micro SD card (T-FLASH card), max 256GB
- Sub Camera 2.0MPĀ or optionalĀ 5.0MP MP night vision camera
- Battery No built-in battery/external power supply
- Display 10.4 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable
- Touch Panel Capacitive
- Microphone and water proof speaker
- RFID 13.56MHz card reader (Optional)
- Power supply: PoE
- wall mount
- Security lock
- Aluminum frame
- Android 13 os
Data interface: I/O: 2* Relay, 2*USB, 1*RJ45(100M, PoE function)
Specifications
|
Ā CPU
|
Ā | RK3399 2.0 GHz Quad coreĀ |
|
Ā Memory
|
Ā
|
2GB DDR3 (On Board) optional 4GB |
|
Ā Power Supply
|
Ā
|
Supports PoE (802.3at) or alternate 12V7A DC-in power supply |
|
Ā I/O Ports (Default)
|
Ā
|
1 x RJ45 (POE), 2 x USB, 1 x Audio out
Built-in Relay |
| Ā Storage | EMMC 16GĀ | |
|
Ā Operational Temperature
|
Ā
|
0Ā°C ~ 45Ā°C
|
|
Ā StorageĀ Temperature
|
Ā
|
-20Ā°C ~ 85Ā°C
|
|
Ā Relative Humidity
|
Ā
|
20% ~ 90% non-condensing
|
|
Ā OS Support
|
Ā
|
Android 13 |
|
Ā Installation
|
Ā
|
Panel mounting, clips, VESA mounting 75 x 75 mm (10.4″ & 12.1″)Ā / 100 x 100 mm (15″ ~ 21.5″ Ā ) |
| Display | ||
| Size / Aspect RatioĀ | Ā 10.4″ TFT (4:3) | |
| Ā Back Light | Ā LED | |
| Ā Resolution | Ā 1280(H)*(RGB)*800(V) | |
| Colors | Ā 16.2 M | |
| Ā LuminanceĀ (cd/m2) | Ā 500 optioinal 1000 nits | |
| Ā Contrast Ratio | Ā 1200:1 | |
| Ā Viewing Angle (H/VĀ°) | Ā 176/176 | |
| MTBF (hrs) | Ā 50,000 | |
| Ā Touch Screen | Ā 10 point capacitive Touch sceen. Optional, Resistive, SAW, IR | |
| Camera | Ā Front 2MP HD camera with night vision | |
| Speaker | Built-in 2 front 2W speakers | |
| Ā Microphone | Built-inĀ | |
| Optional Modules | NFC reader, WIFI, BT, 3G/LTE | |
| Ā Colors | Ā Black, white, Silver | |
| Ā Dimension (W x H x D, mm) | Ā 305x210x45.5mmmm | |
| Weight (kg) | Ā 4.5 |
